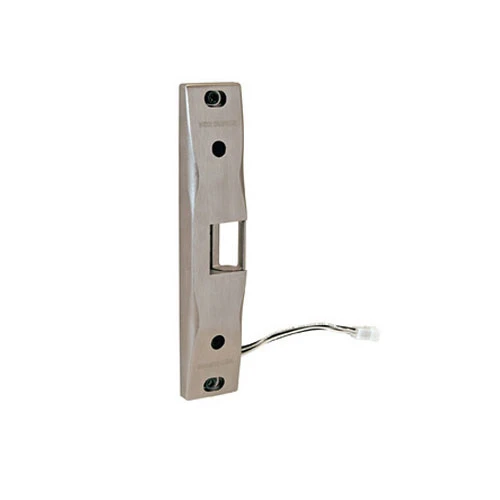

Von Duprin 6300: A Fire-Rated Strike You Surface-Mount, No Cutting the Frame
Posted by Kent on 27th Sep 2026
Von Duprin 6300: A Fire-Rated Strike You Surface-Mount, No Cutting the Frame
Somebody wants card access added to a door with a Von Duprin rim exit device, and the frame is one you are not allowed to touch. Historic building, a leased space where the landlord owns the frame, a decorative finish that would show every mark from a router. Most fire-rated electric strikes want a mortise pocket cut for them. The Von Duprin 6300 doesn't. It bolts to the face of the frame on a handful of mounting holes and keeps the fire rating intact.
What makes it surface-mount, and why that matters
The 6300 doesn't sit inside a pocket cut into the frame the way most rim-device strikes do. It mounts to the surface with a keeper that projects out to catch the latch, so the only holes you're drilling are for the mounting screws, not a router template for a recessed cavity. On a fire-rated frame, that's the whole appeal: you're not compromising the frame's listing by cutting into it, and on a frame you legally or practically cannot modify, it's often the only strike option that works at all.
Fire rating and fail mode are locked together on this one
The 6300 carries a UL10C fire rating to 3 hours, plus UL1034 burglary-resistant listing, and it ships fail-secure only. That's not a configuration option, it's what the fire listing requires: a fire-rated opening has to stay secured if power drops, not swing free. The door's own mechanical egress hardware, the rim device it pairs with, still lets people out from the inside regardless of power. If somebody on the job asks for fail-safe behavior on this strike so the door releases on power loss, that's not available on the 6300 and shouldn't be forced, the fire rating depends on staying fail-secure.
Voltage, throw, and what it pairs with
Power is 12 or 24 VDC, field-selectable, and it ships with both connectors so you wire whichever voltage the access panel supplies. Latch throw is 3/4", standard for a rim device keeper. Von Duprin lists it compatible with its own 22, 33A, 35A, and 88 Series exit devices along with the 98/99 line, so it covers most of the rim-device lineup Lock Depot stocks, not just one model.
The movable keeper is worth knowing about before you wire it
One detail that trips people up on a first install: the 6300's keeper lip is movable, not fixed. That means the door can still be pushed open even while the latch bolt is fully extended, a feature Von Duprin calls remote release. Practically, it means a momentary unlock signal from the reader doesn't have to line up perfectly with someone actually pulling the door, there's a little forgiveness built into the mechanism instead of a hard jam if the timing is off. It's a small thing on the spec sheet and a real thing on a job where the access panel's unlock pulse and the door pull don't always land in the same half-second.
Construction is heavy-duty stainless steel, non-handed, so the same part number works on a left- or right-hand door without ordering a mirrored version. Warranty runs 3 years on the electronic components and limited lifetime on the mechanical body, which is the standard Von Duprin split between the parts that can fail electrically and the parts that are basically just steel.
Where this actually gets specified
The jobs where I point people to the 6300 by name: a landmark or historic-district building where the frame can't be altered without a variance, a tenant fit-out where the frame belongs to the landlord and the lease says hands off, or a fire-rated stairwell door where the existing rim device is staying put and cutting a fresh mortise pocket into a rated frame isn't something you want to sign off on. On a plain non-rated door with a fresh frame and no restrictions, the 6111 or a standard mortise strike is usually the more common choice and often the cheaper one. The 6300 is the answer to a specific constraint, not the default.
Common questions
Do I have to cut the frame to install the Von Duprin 6300?
No. It mounts to the surface of the frame on mounting screws. The only holes you drill are for the mounting hardware, not a recessed pocket for the strike body.
Can the 6300 be set to fail-safe instead of fail-secure?
No. It ships fail-secure only, which is a requirement of its UL10C fire rating, not a configurable option. If a life-safety code calls for a fail-safe opening, that's a different strike or a different approach, not this model.
What exit devices does the 6300 work with?
Von Duprin lists it compatible with the 22, 33A, 35A, 88, and 98/99 Series rim exit devices, which covers most of the rim-device line Lock Depot carries.
What voltage does it run on?
12 or 24 VDC, field-selectable, with both connectors included in the box so you match whatever the access panel supplies.
Lock Depot stocks the Von Duprin 6300 in satin stainless, in stock and ready to ship. Start at the Von Duprin hub, or if your frame already has a strike cutout and cutting isn't a concern, read Von Duprin 6111: Electric Strike for a Fire-Rated Panic Bar. For the fail-safe-vs-fail-secure decision on other Von Duprin strikes, see Von Duprin 6215: Fail-Safe or Fail-Secure Electric Strike. Or call 877-365-5625 and tell us whether the frame can be cut. That answer alone tells us which strike to read you.
