Product Description

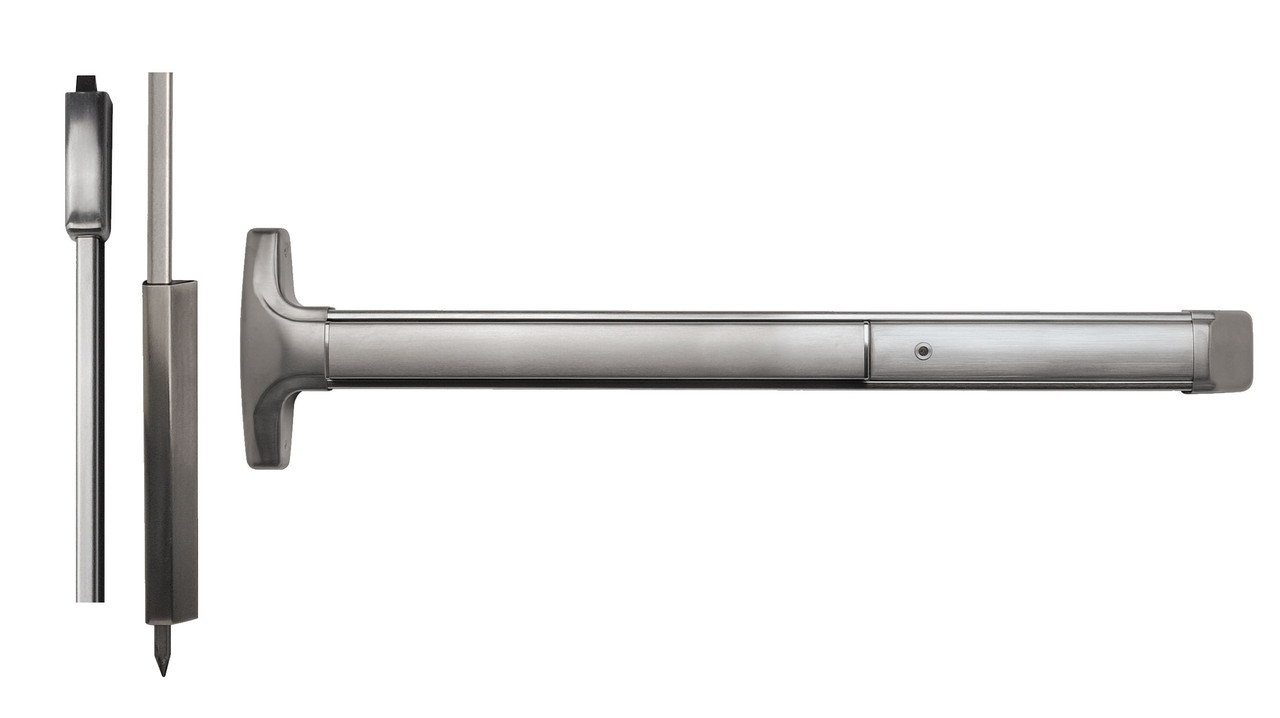

V50 LD 628 96 36X84 Detex V50 Series Surface Vertical Rod Exit Device — Less Dogging, Satin Aluminum Clear Anodized
Fire-rated openings don't allow dogging — the door must latch positively every single time. The Detex V50 is purpose-built for fire-rated exits where code prohibits any hold-open mechanism.
Technical Specifications
| SKU | V50 LD 628 96 36X84 |
| Series | Detex V50 Value Series |
| Mount Type | Surface Vertical Rod |
| Stile | Wide Stile |
| Grade | ANSI/BHMA Grade 1 |
| Function | Less Dogging |
| Finish | Satin Aluminum Clear Anodized (628) |
| Strike | 96 Surface Strike |
| Device Length | 36" |
| Door Size | 36X84 |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- No dogging mechanism — door latches every time it closes. Required for fire-rated openings where code prohibits dogging.
What's in the Box
- Detex V50 Surface Vertical Rod Exit Device
- 96 Surface Strike
- Mounting hardware and template
- Installation instructions
Pro-Installer FAQ
What's the maximum door height?
Standard configuration fits doors up to 36X84. Top and bottom rod lengths are field-adjustable. For doors exceeding standard height, verify rod lengths before ordering.
Why would I choose Less Dogging?
LD (Less Dogging) is required on fire-rated door openings where code prohibits holding the latch open. Even if the device itself isn't fire-rated, the opening may require LD based on the door's fire label.
Does Detex cover this under warranty?
Detex provides a limited lifetime warranty on mechanical components and 3 years on electronic components. This covers manufacturing defects — not field damage or improper installation.
Why Lock Depot? We specialize in commercial exit hardware. Factory-sealed, Grade 1 Detex devices ship same day on available stock. Need help specifying the right device for your opening? Call us.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
