Product Description

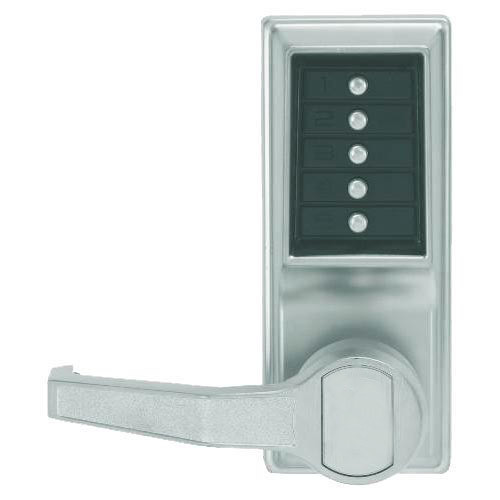

When facility managers need keyless entry that holds up, the Simplex L1000 Series delivers. The LR1011-026-41 in Bright Chrome provides proven mechanical pushbutton access.
Key Features
- All-mechanical operation - no batteries to replace, no wiring required
- Single access combination with thousands of possible codes
- Combination changed at the keypad without removing lock from door
- ADA-compliant lever design
- Vandal-resistant solid metal pushbuttons
- Weather-resistant for indoor/outdoor installation
- 3-hour UL/ULC fire rated
Technical Specifications
- Model: LR1011-026-41
- Series: Simplex L1000 Series

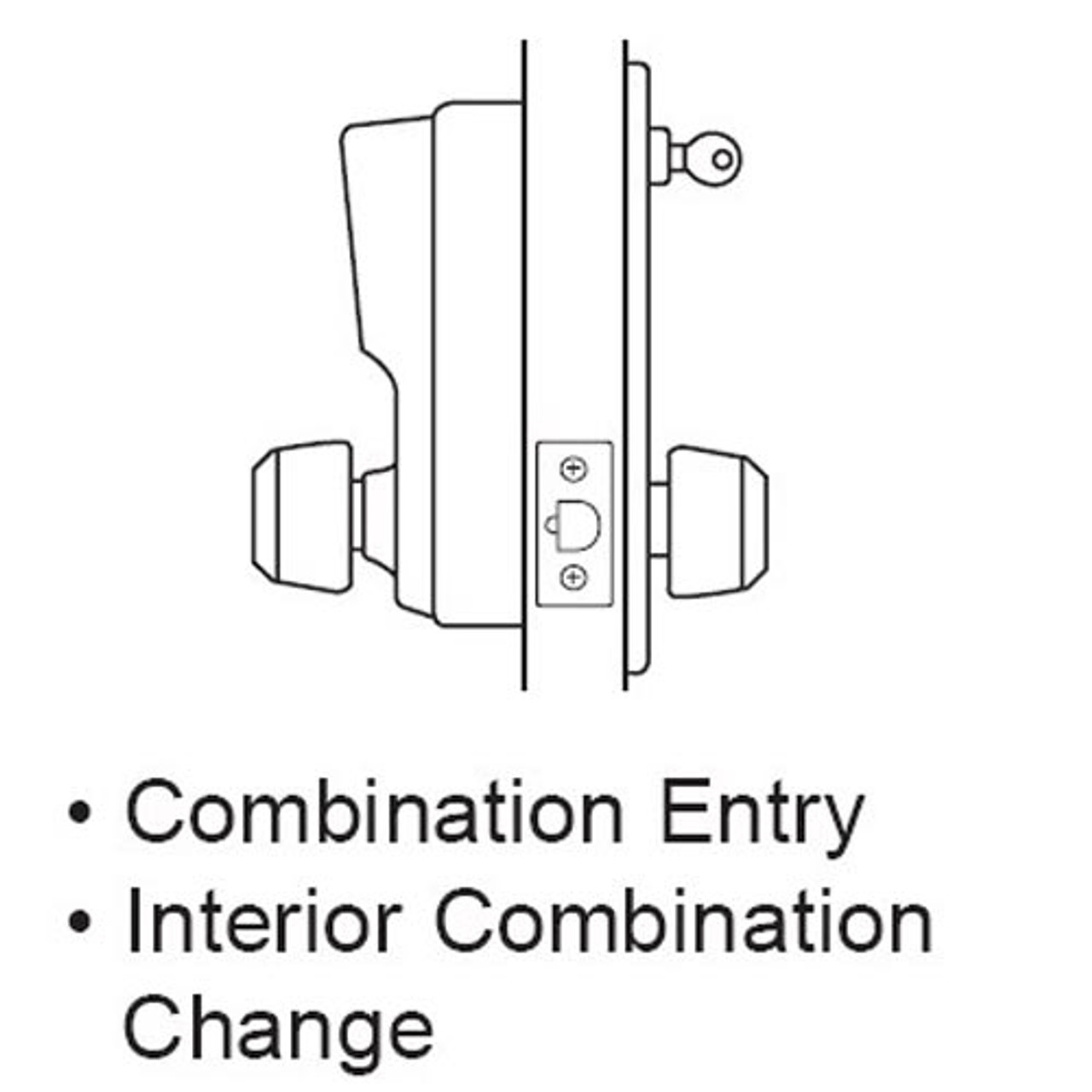

- Function: Combination Entry Only
- Finish: Bright Chrome (US26/625)
- Grade: ANSI/BHMA Grade 1
- Backset: 2-3/4 in. (70mm)
- Latch Throw: 1/2 in. (13mm)
- Door Thickness: 1-3/8 in. to 2-1/4 in.
- Handing: Right Hand (factory handed)
- Fire Rating: 3-hour UL/ULC
- Warranty: 3 Year
Installation Notes
- Standard cylindrical prep - 2-1/8 in. cross bore, 1 in. edge bore
- No electrical or low-voltage work required
- Template and mounting hardware included
- Factory handed - confirm door swing before ordering
Dormakaba Simplex mechanical locks are specified by architects and security professionals for dependable access control. Lock Depot offers expert support on all Simplex products.
Related guide: Simplex 1011 vs LR1011: Knob or Lever for ADA Compliance — Knob or lever on the same mechanical pushbutton lock, and why that one trim choice decides ADA compliance on an accessible door.
Warranty Information
3 years manufacturer warrantyProduct Videos
Custom Field
Product Type Cylindrical Lock
Series LR1011
Finish Bright Chrome
Trim Lever
Mount Type Cylindrical
Cylinder Combination Only
