83IC/45 ABUS 83IC/45 Brass Padlock, Small Format IC Prep, 1" Shackle, Less Core
If the doors run on small format interchangeable cores, the padlocks should run on the same control key. The ABUS 83IC/45 is the 1-3/4" brass 83 padlock prepped for a small format IC core and sold less core. Drop in a 6-pin or 7-pin SFIC core from your own system and it is keyed into the building.
The shackle is 5/16" hardened steel with 1" vertical clearance, sized for hasps, gate latches and cabinet staples. When a core changes, the padlock changes with it. No rekeying the padlock itself.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | 83IC | ABUS 83 Series padlock, interchangeable core prep |
| Body width | /45 | 45 mm (1-3/4") brass body |
| ABUS item no. | 83718 | ABUS USA price list item number |
ABUS prints this model as 83IC/45. Longer shackles are separate models: 83IC/45HB50 (2"), HB75 (3"), HB100 (4"), HB150 (6").
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 83IC/45 |
| Manufacturer | ABUS |
| ABUS item no. | 83718 |
| Body | Brass, 1-3/4" (45 mm) wide |
| Core | Small format interchangeable core (SFIC) prep, 6-pin or 7-pin; less core |
| Shackle | Hardened steel, 5/16" diameter |
| Shackle clearance | 1" vertical |
What's in the Box
One ABUS 83IC/45 brass padlock, SFIC prep, less core.
Pro-Installer FAQ
Q: Does it come with a core?
A: No. It is sold less core. Install a small format IC core from your system with your control key.
Q: Will a Schlage large format core fit?
A: No. This model takes small format (SFIC) cores, 6-pin or 7-pin. Large format cores do not fit.
Q: I need a taller shackle.

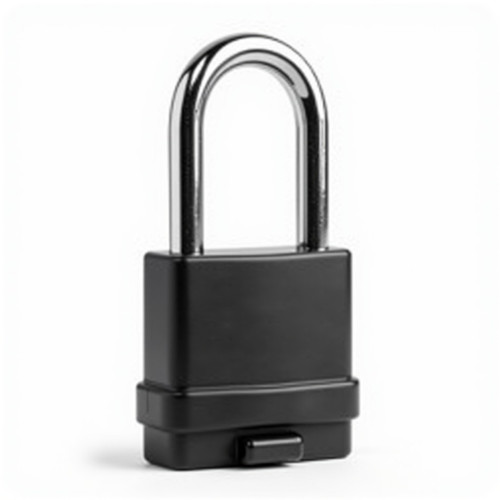

A: ABUS builds the same body as the 83IC/45HB50 (2"), HB75 (3"), HB100 (4") and HB150 (6"). For outdoor duty there is the weather protected 83WP-IC/53.
